Creality HalotMage Pro CL103

Creality HalotMage Pro CL103

The Creality Halot-Mage CL-103 is a cutting-edge resin 3D printer designed for high-precision and efficiency. With its 10.3-inch 4K monochrome LCD.

Regular price £385.83 exVAT
Regular price Sale price £385.83
Sale Sold out
View full details

Product Description

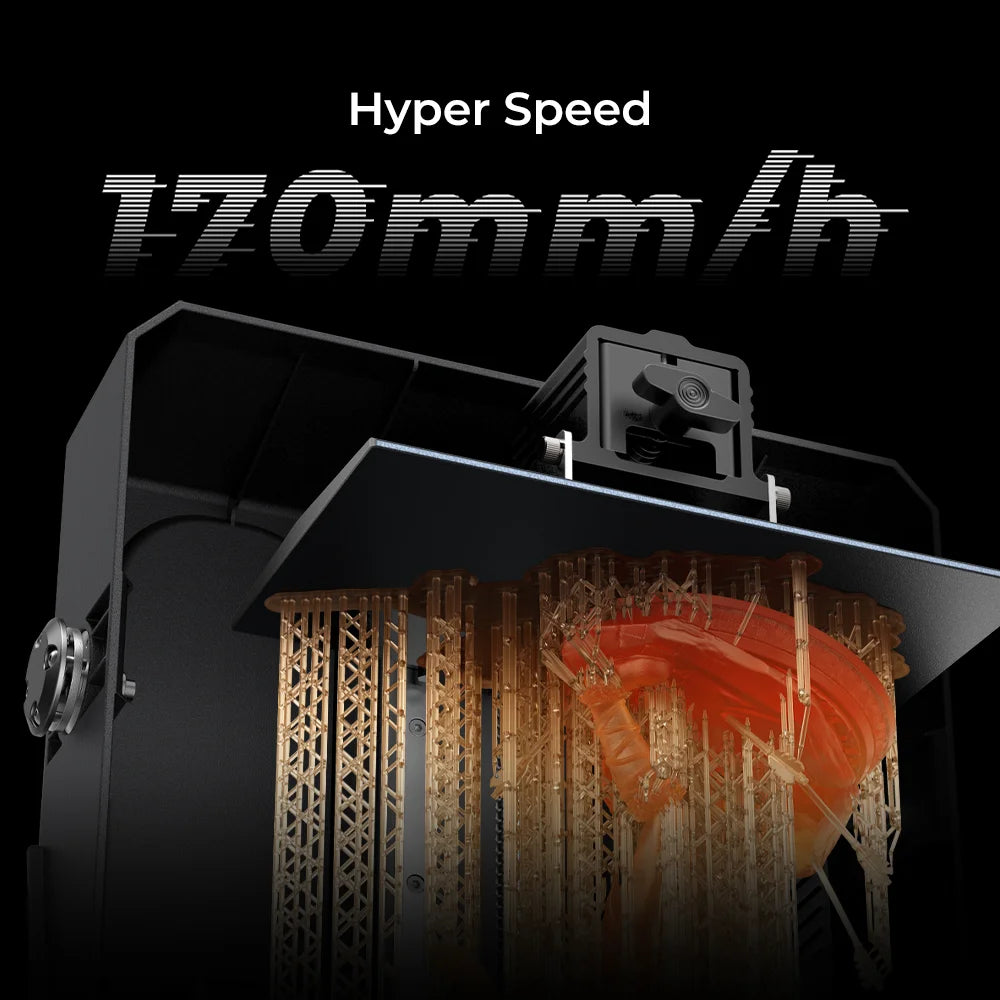

Epoch-making Hyper Speed

3 to 5x faster than the competition while still keeping the quality. *Data from Creality Lab. The typical speed is 70mm/h. Speed is better achieved with Creality fast resin.

Agile "Dynax" Motion System

The build plate can be steadily lifted and lowered in just 1.2 seconds, then ready to print the next layer. And, the model surface is delicate.

Integral Light Source 3.0

90%+ light uniformity, promising consistent quality regardless of where the print is placed on the build plate. 8000μw/cm² light intensity, curing a layer in 1s with standard 405nm resin. It creates smooth surfaces and crisp contours.

Self-developed Algorithms for High Speed

Advanced motor control algorithm, boosting the motor speed to 100mm/s. Support-adding algorithm of HALOT BOX, securing the model firmly.

10.3’’ 8K LCD, Pro Results

Using an 8K mono LCD featuring 29.7μm XY resolution, more refined and anti-aliasing than the 50μm of a regular 4K printer. The large LCD brings a generous 228x128x230mm build volume, giving you more space to create.

Game-changing Smart Resin Pump

HALOT-MAGE PRO comes with auto resin fill & withdrawal. The smart resin pump can refill or recover 1 litter of resin within half an hour. Less messing by hand, and much fewer splashes and stains. The feeding tube is free to stick into any container.

Print and Monitor Anywhere with Smart Connectivity

Cloud Printing*: Control or monitor remotely from Creality Cloud APP or WEB. LAN Printing*: Command from a PC (installed with HALOT BOX) on the same LAN. Print via USB Drive: Import printable files from a USB drive for uninterrupted printing. USB Camera (Optional): Plug in any USB camera for remote monitoring.

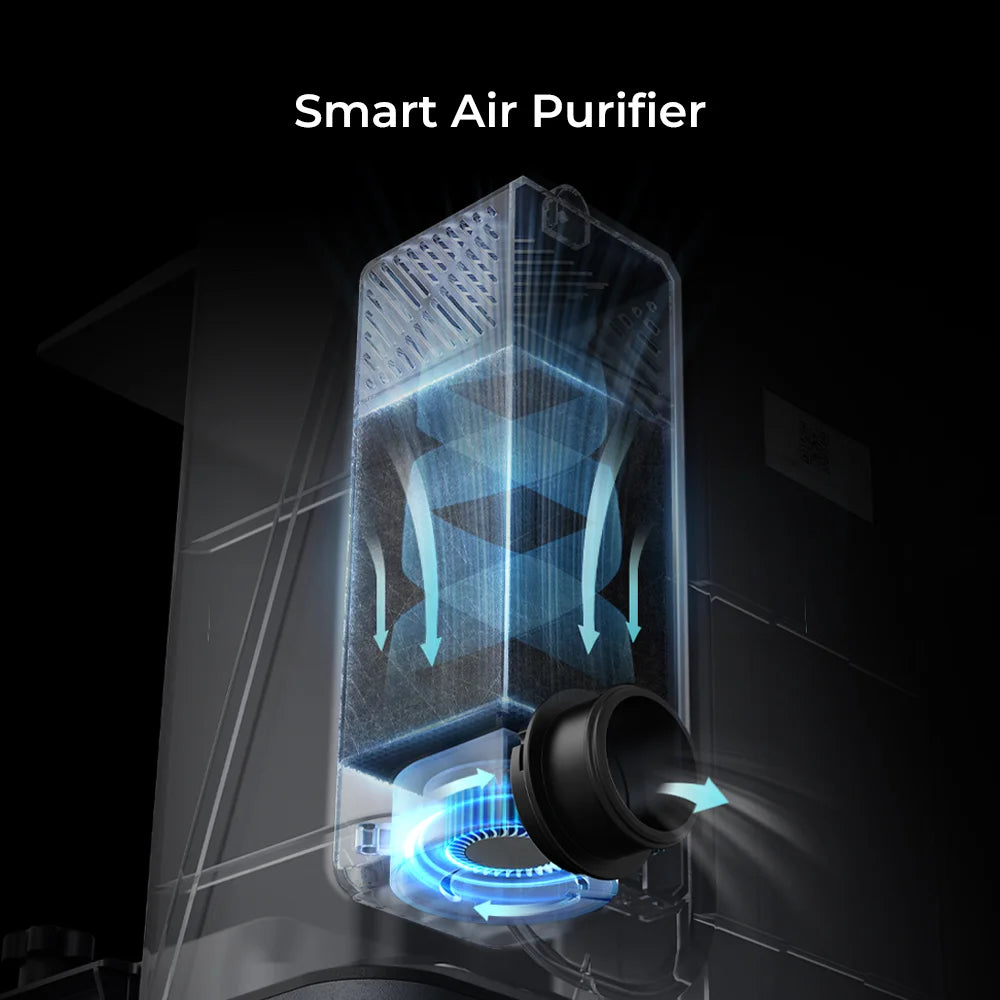

Smart Air Purifier

Powered and controlled via the printer directly, it includes a replaceable activated carbon filter that is 5.8 times larger than others. It absorbs irritant resin odor more efficiently. A vent hole is at its back to connect a vent tube.

Collapsible content

Whats Included

1 x Printer
1 x USB
1 x Manual
2 x Resin filter

Technical Specification

Printing Technology: MSLA

Build Volume: 228x128x230mm (6712cm³)

Product Dimensions: 333x270x608mm

Package Dimensions: 420x350x675mm

Net Weight: 13.3kg

Gross Weight: 16.2kg

Printing Speed: ≤170mm/h

Layer Height: 0.05-0.15mm

LCD Screen: 10.3“ monochrome screen

LCD Resolution: 8K (7680x4320)

XY Resolution: 29.7μm

Light Source: Integral Light Source 3.0

Light Uniformity (%): >90%

Light Intensity: 8000±10%μW/cm²

Release Film: High-speed film

File Transfer: USB drive, RJ45 cable, WiFi, Creality
Cloud

Smart Resin Pump: Yes

Air Purifier: Yes

Input Power: 150W

Resin: 405nm resins

Slicing Software: HALOT BOX, CHITUBOX, Lychee Slicer

Computer OS: Windows/Mac

File Formats: STL/OBJ

Display Screen: 4.3" color touchscreen
